Punch and Die Same Size? That’s the Problem!
When it comes to punching holes, matching punch and die sizes is a mistake we see too often.
A punch and die are not meant to be the same size when used together. Without proper clearance, you’re setting yourself up for a crash, resulting in broken tooling and a dangerous situation.

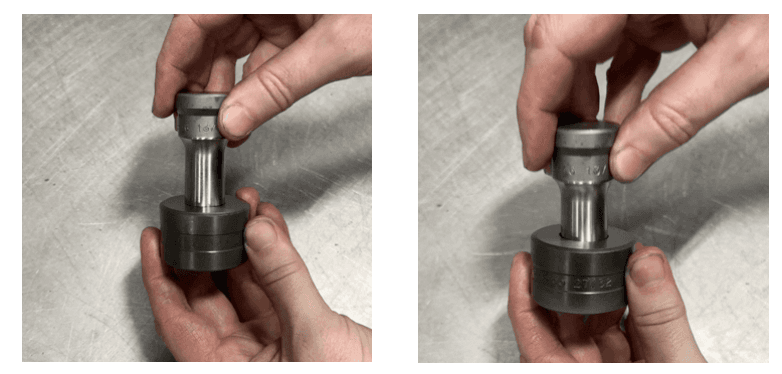

13/16” Punch with a 13/16” Die Vs 13/16” Punch with a 27/32” Die

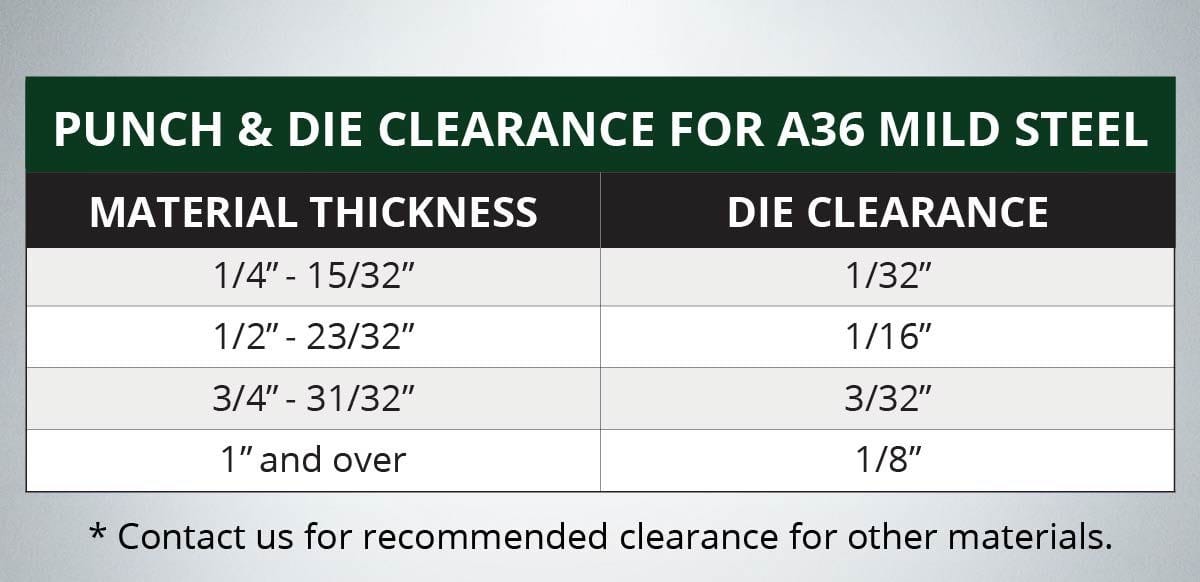

How to Determine Die Clearance?
Material type and thickness is what determines die clearance. Thinner material requires less clearance and the thicker it gets, the more clearance you need.
