F26 Hexagon Punches with V-Groove
$135.00 Price Includes Surtax/Tariffs
- “A” Stands for Punch Size
- Equivalent Part Numbers: AP-128, CST-228, GFM-45, PIR-EF
- Commonly matched with: F62 Hexagon Dies
- Used by these Ironworkers:

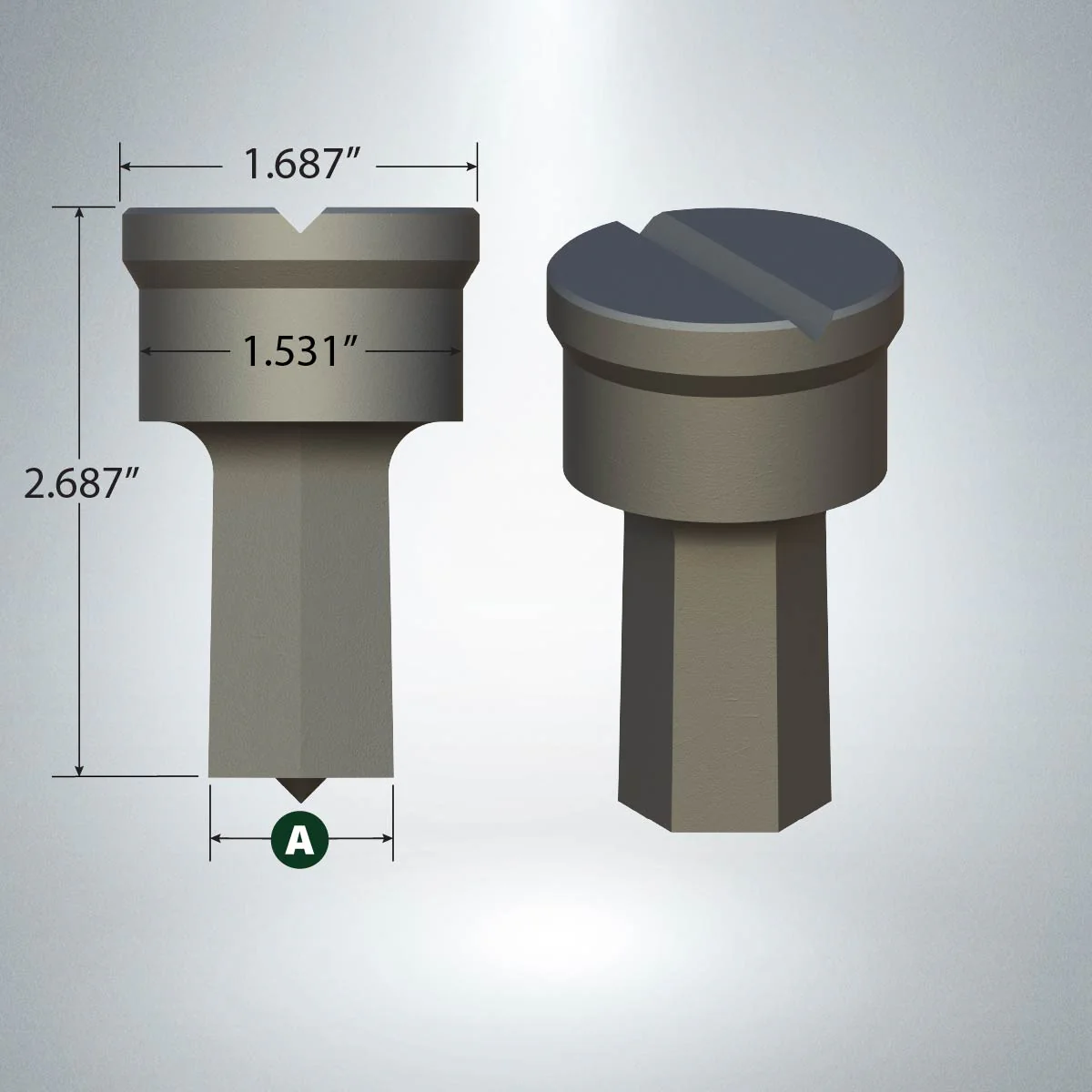

Dimensions:
- Head Diameter: 1.687″
- Body Diameter: 1.531″
- Overall Length: 2.687″
Punches are supplied with a single v-groove. Use 1/8″ Round x 1-5/8″ Long Keystock to align punches in the machine.
Punch & Die Clearance: The punch and die should NOT be the same size.
Note: Material thickness should not exceed punch size.
