F26 Hexagon Punches with V-Groove
- “A” Stands for Punch Size
- Equivalent Part Numbers: AP-128, CST-228, GFM-45, PIR-EF
- Commonly matched with: F62 Hexagon Dies
- Used by these Ironworkers:
Ironworkers Punches Measuring Guide
Let’s measure the Punch first! We need all three dimensions shown. Overall Length, Head Diameter (Base) Width and also the body Diameter Width. All shape options (Round, Oblong, etc…) will be the same. Search for your measurements below to determine what Punch your Ironworker uses! Now go Shopping! (punchesanddiescanada.com – Punches) …
F16 Round Punches
- “A” Stands for Punch Size
- Equivalent Part Numbers: AP-119, CST-219, GFM-37, PIR-DH
- Paired with: F55 Round Dies and F59 Round Dies
- Used by these Ironworkers: Cleveland Steel Tool, Durma, Excel, Edwards, Ficep, Piranha
Click here to use our Punch & Die Clearance Chart to choose the right Die clearance
F20 Round Punches
- “A” Stands for Punch Size
- Equivalent Part Numbers: AP-121, CST-221, GFM-40, PIR-EA, SCOT-40
- Commonly paired with F55 Round Dies,F59 Round Dies and F62 Round Dies.
- Used by these Ironworkers: Durma, Excel, Fabmaster, Ficep, Geka, Kingsland, Peddinghaus, Scotchman.
Click here to use our Punch & Die Clearance Chart to choose the right Die clearance
C89 Round Dies
- “A” Stands for Die Size
- Equivalent Part Numbers: AP-321, CST-421, GFM-89, PIR-JK
- Commonly paired with: F20 Round Punches, or F26 Round Punches
- Used by these Ironworkers: Durma, Geka.

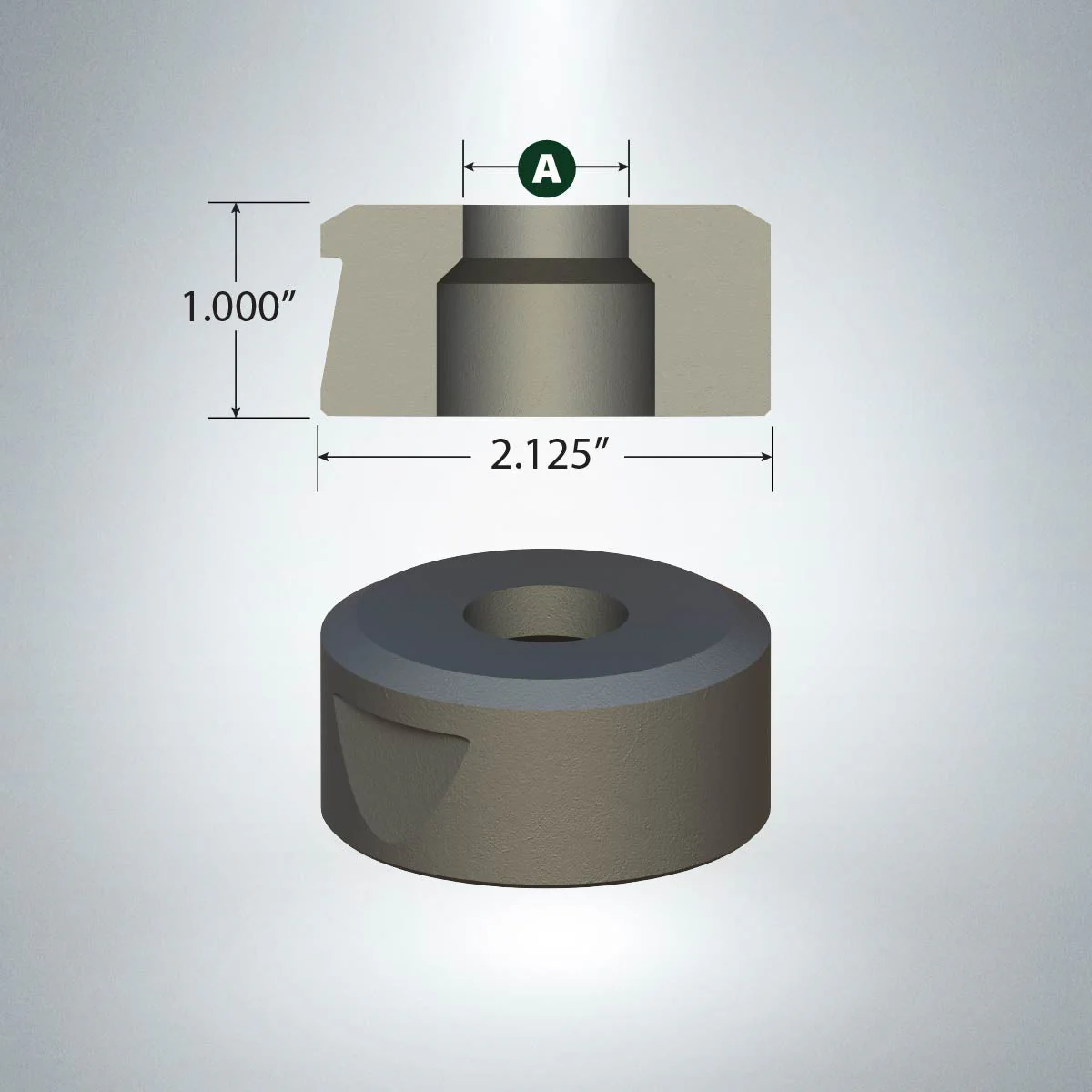

F740 Round Dies
- “A” Stands for Die Size
- Equivalent Part Numbers: AP-347, CST-47, GFM-132, WAW-7412
- Commonly paired with: F272 Round Punches.
- Used by these Ironworkers: Peddinghaus.
F59 Round Offset Dies
- “A” Stands for Die Size
- Equivalent Part Numbers: AP-317, CST-417, GFM-82, PIR-JC, SCOT-82
- Commonly paired with F16, F20, and SR20K Round Punches.
- Used by these Ironworkers: Durma, Ficep, Geka, Peddinghaus, Scotchman, Uni-Hydro.
F59 Round Dies
- “A” Stands for Die Size
- Equivalent Part Numbers: AP-317, CST-417, GFM-82, PIR-JC, SCOT-82
- Commonly paired with: F16 Round Punches, F20 Round Punches, and SR20K Round Punches.
- Used by these Ironworkers: Durma, Excel, Ficep, Geka, Peddinghaus, Scotchman, Uni-Hydro.
F55 Round Offset Dies
- “A” Stands for Punch Size
- Equivalent Part Numbers: AP-313, CST-413, GFM-81, PIR-JB
- Commonly paired with: F12 Round Punches, F16 Round Punches and F20 Round Punches
- Used by these Ironworkers: Amada Marvel, Cleveland Steel Tool, Edwards, Fabmaster, Geka, Peddinghaus, Piranha.
F55 Round Dies
- “A” Stands for Die Size
- Equivalent Part Numbers: AP-313, CST-413, GFM-81, PIR-JB
- Commonly paired with: F16 Round Punches, and F20 Round Punches.
- Used by these Ironworkers: Cleveland Steel Tool, Edwards, Fabmaster, Ficep, Geka, Peddinghaus, Piranha.
