F272 Oblong Punch with 1/4″ x 1/8″ Cross Keyway
$84.00 CAD Funds
- “A” Stands for Die Size
- Equivalent Part Numbers: AP-164, CST-64, GFM-124, WAW-7721
- Commonly paired with F740 Oblong Dies.
Please Note: Review your Ironworker’s recommended Punches and Dies dimensions before ordering.

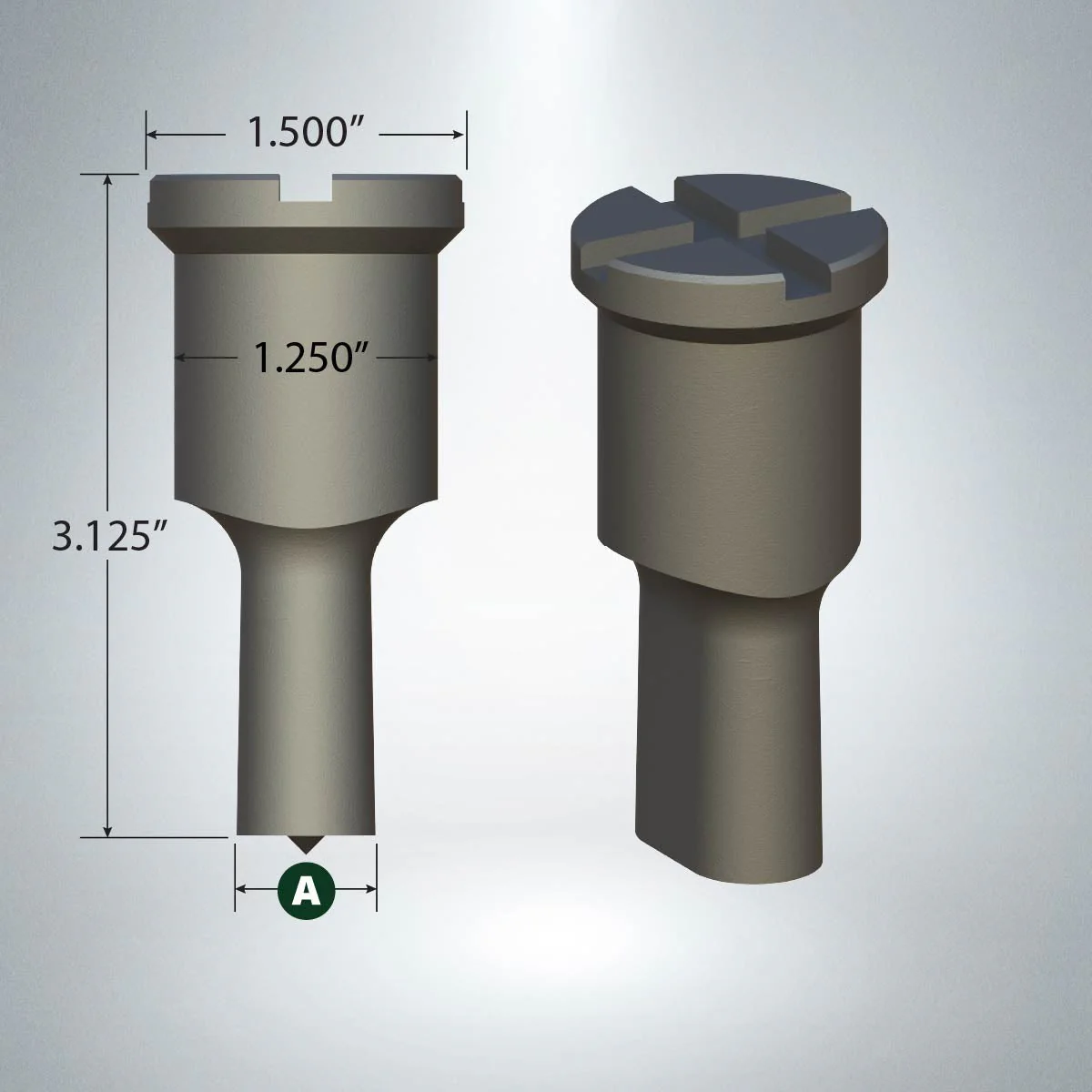

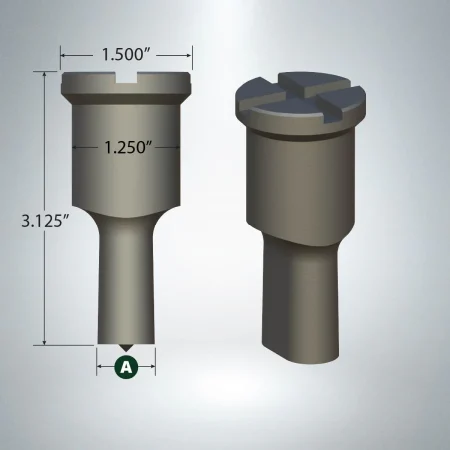

Dimensions:
- Head Diameter: 1.500″
- Body Diameter: 1.250″
- Overall Length: 3.125″
Punches are supplied with a 1/4″ wide x 1/8″ deep cross keyway. Use 1/4″ x 1/4″ Keystock to align punches in the machine.
Punch & Die Clearance: The punch and die should NOT be the same size.
Note: Material thickness should not exceed punch size.
All sizes listed are in stock. Contact us for custom sizes not listed.
